xTool Automatic Conveyor Feeder for xTool P2S & P2
FEATURES

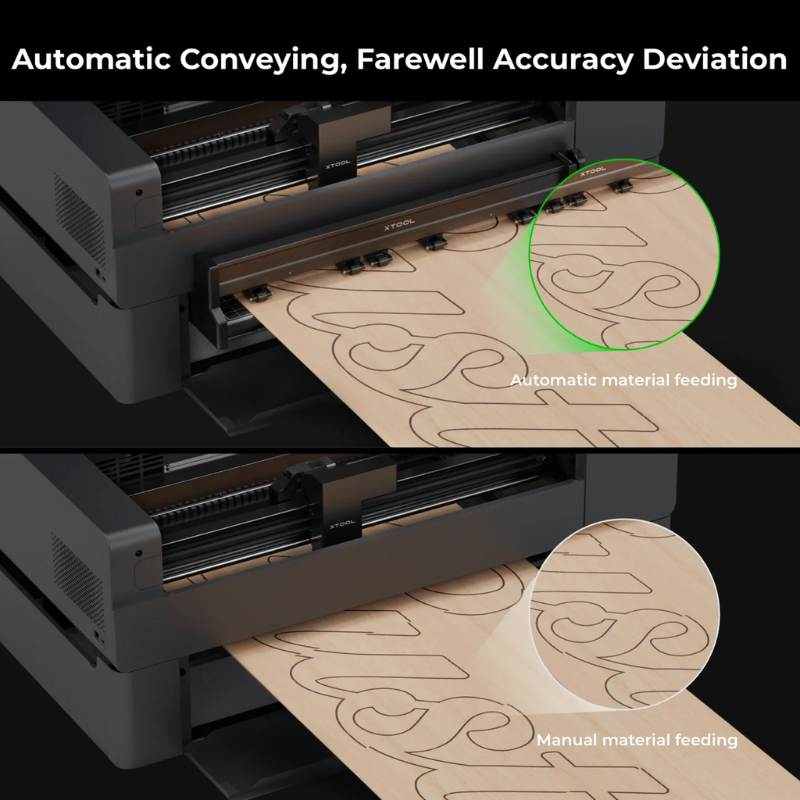

Automatic Material Handling: Streamlines the processing of larger materials, reducing manual workload.

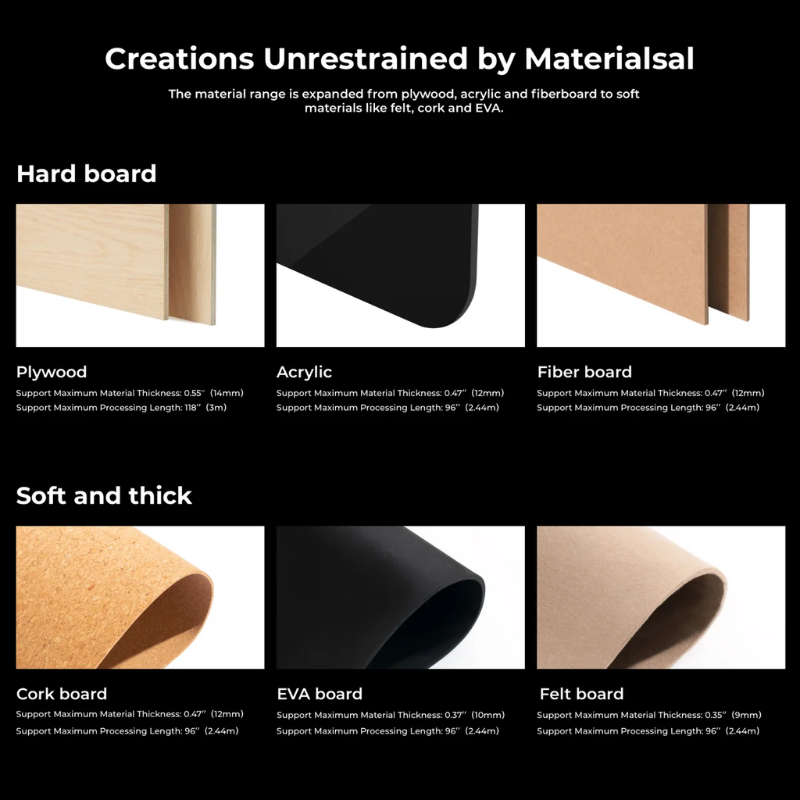

Broad Material Compatibility: Supports a wide range of materials, from hard plywood to soft and thick boards.

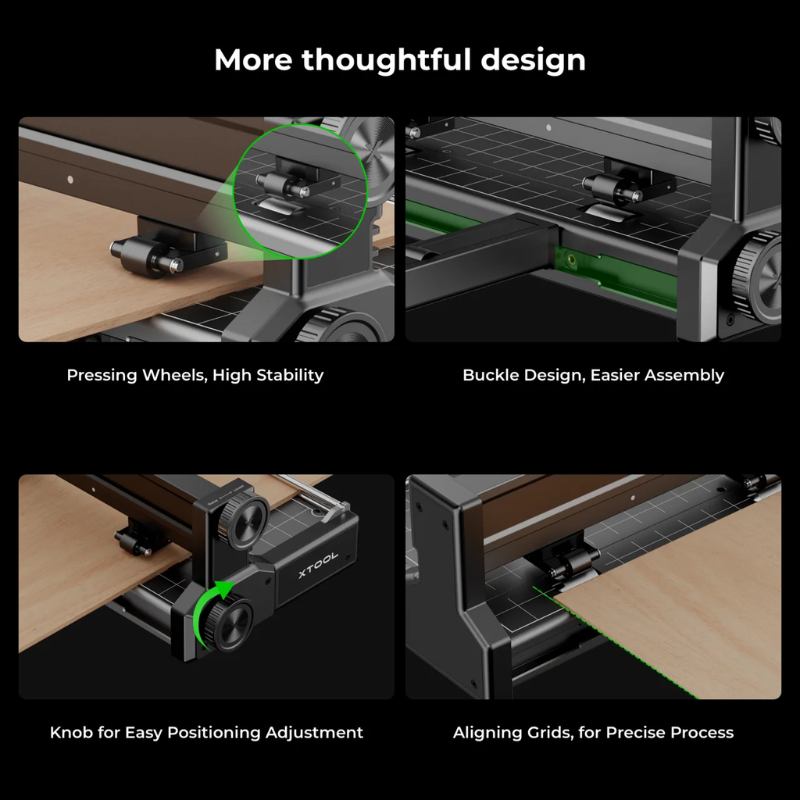

Enhanced Stability: Equipped with anti-slip pressure wheels to ensure materials remain in place during processing.

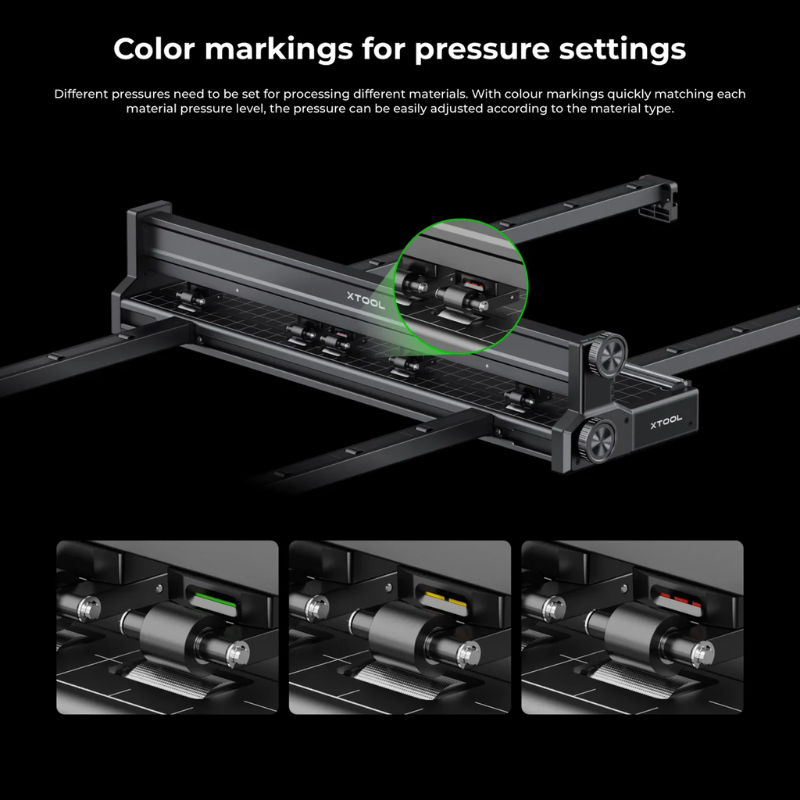

Adjustable Settings: Features color markings and a knob for easy adjustment of material pressure and positioning.
Extended Processing Area: Offers a maximum processing area of 118”×19.6”, accommodating large-scale projects.

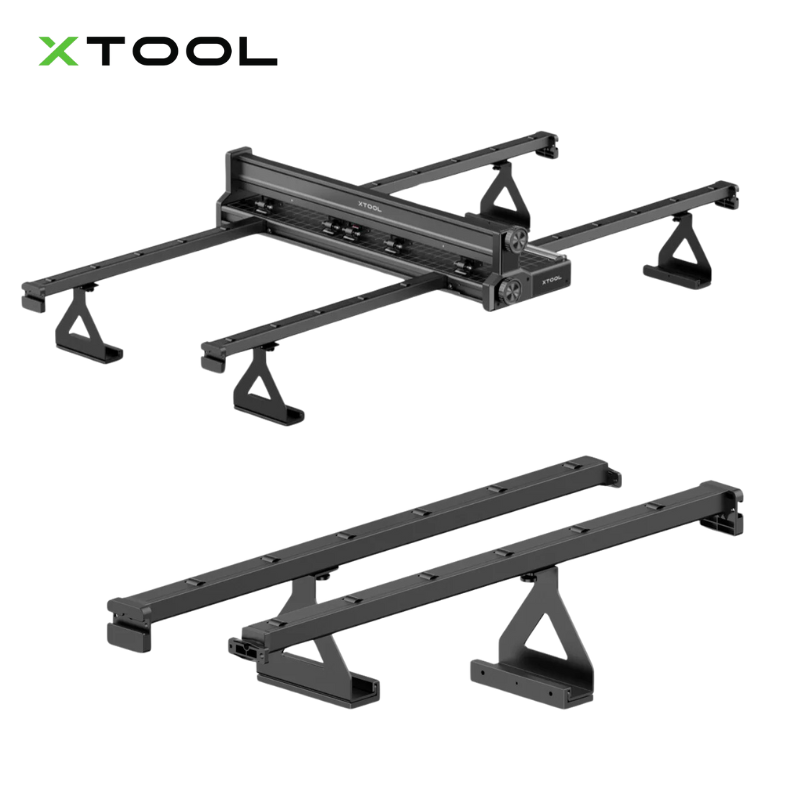

xTool Conveyor Rails
These Conveyer Rails can be added to the Automatic Conveyer Feeder to increase the working area of your xTool P2 laser. By purchasing the Automatic Conveyor Feeder together with three pairs of Conveyor rails, you can increase your working area to 118”×19.6” (3000mm×500mm). . This allows you to achieve beautiful and large projects with consistent laser quality and no interruptions in your design.
Specification
| Product Infomation | Automatic Conveyor Feeder for xTool P2 |
|---|---|
| Applicable to | xTool P2 |
| Package Size | 30.2”×10.1”×9.1” (769×255×230mm） |
| Product Size | 27.1”×7.8”×5.3” (687×200×135mm) |
| Product Weight | 8.045kg |
| Max. speed | 160mm/s |
| Work Area | |
| Maximum Processing Area | 118”×19.6” (3000mm×500mm) |
| Maximum Material Width | 24.5” (624mm) |
| Minimum Material Width | 2.5” (65mm) |
| Maximum Material Thickness | 0.55” (14mm) |
| Conveyor Rail | Support Hard Material Length (including hanging in the air 30cm) |
Support Processing Length (including hanging in the air 30cm) |
|---|---|---|
| Basic (2 pairs)*1 | 39” (1m) | 34” (0.85m) |
Soft Material
Without a Conveyor Rail, the material can be hung down on both sides of the working area of conveyor feeder.（Some soft materials need to be processed with PET tape）
