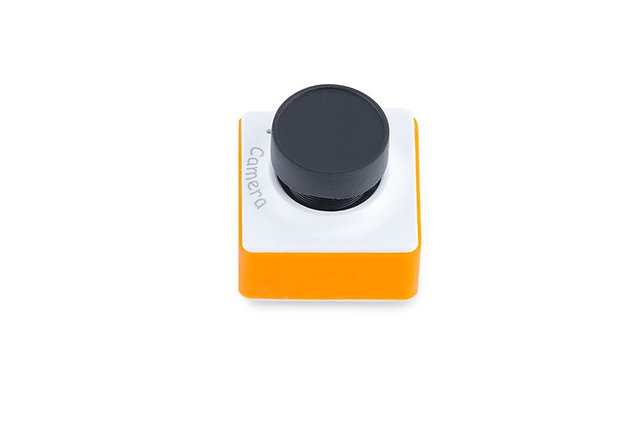

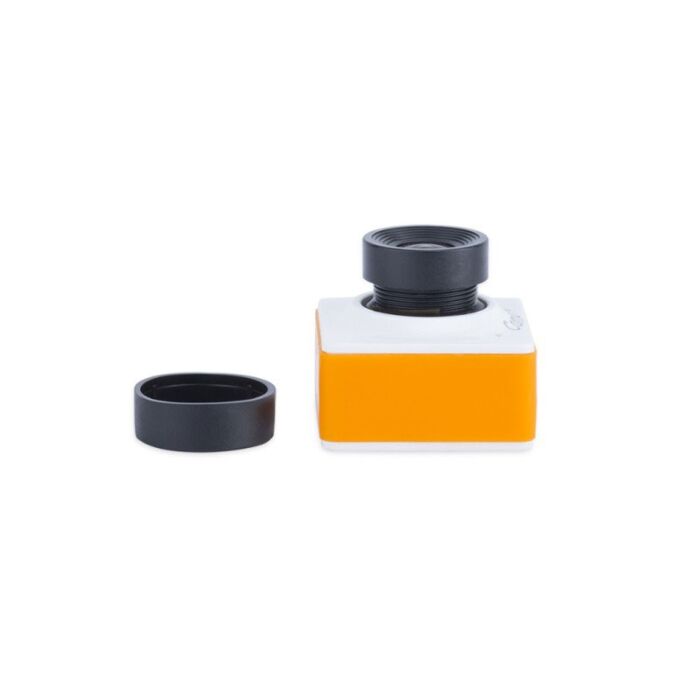

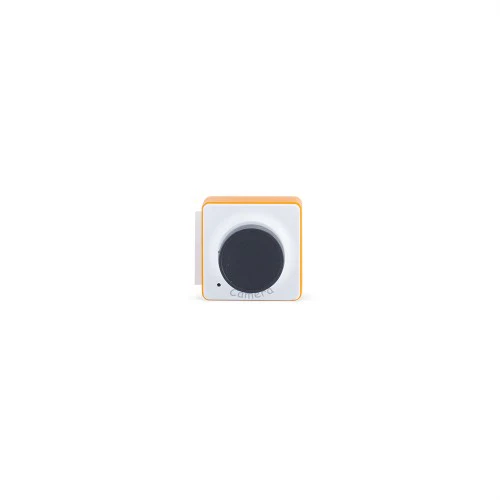

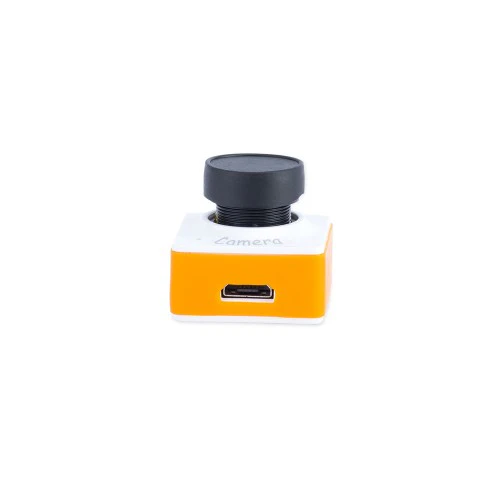

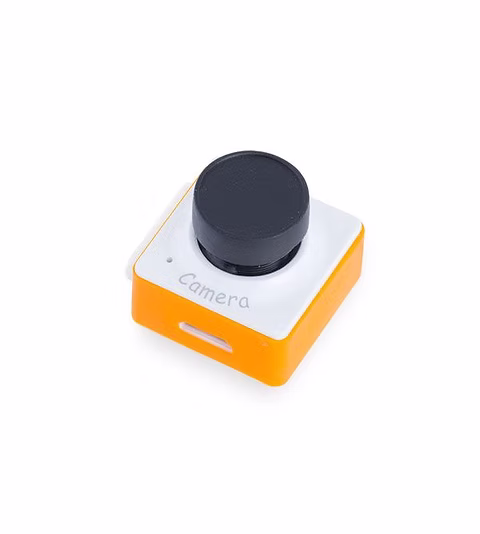

The Camera block adds photographic capability to your invention.
Features:
HD resolution;
Supports AI face and voice recognition;
Supports offline operation when connected to Wi-Fi block;
Contains the independent status indicator light and main control chip;
The magnetic design at the back of Neuron blocks makes you can simply place your gadget on the magnetic surface such as whiteboard;
Support two ways to update firmware: wired and wireless.
Specification:
Resolution: 1280×720;
Pixel Size: 3.4um×3.4um;
Max Image Transfer Rate：Full size @ 30fps;
Optical FOV: 100°;
Lens Construction: 4G+IR;
F/No：2.97;
Effective Focal Length (EFL): 2.4mm;
Power Consumption: 100uA (Standby)~240mW (Active);
Power Supply: USB Bus Power;
Anti-drop Ability: 1.0m;
Temperature Range: -30℃~70℃(Operating), 0℃~50℃(Stable Image);
Operating Humidity: ＜95%.
Pack List:
1×Camera Block
